MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

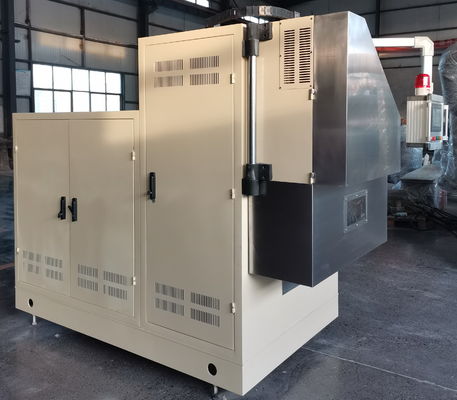

Grote Afbeelding : MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	Osay

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	US$140,000

Contact

Gedetailleerde productomschrijving

Dimensie:	188111162160	Stroom:	9.15W
Spanning:	380V ± 38V	Gewicht:	4000 kg
Omgevingstemperatuur:	10-40°C	Relatieve vochtigheid:	≤80%
Hoogte:	≤2000m	Controlemodus:	Servo Drive+PLC+Touchscreen
Snijbreedte:	0.51.5mm	Materiaalstapelcapaciteit:	120 kg/m³
Nominale capaciteit:	3000kg/h	Mes deurhoogte:	75 mm
Mes deurbreedte:	400 mm	Aantal bladen:	8
Snelheid van de snijkop:	50-300 tpm	Bladlevensduur:	98 uur
Markeren:	380V rotary cutting machine , PLC control tea cutter , vegetable cutting machine for tea

MC84R Rotary Cutting Machine for Vegetables Tea with Auto Sharpening System PLC Control

Product Attributes

Attribute	Value
Application	Vegetables, tea or similar materials
Warranty	1 Year
Dimension (lwh)	188111162160
Power (w)	9.15
Voltage	380V±38V
Weight (kg)	4000
Video outgoing-inspection	Provided
Machinery test report	Provided
Core components	PLC
Environmental temperature	10-40 ℃
Relative humidity	not exceeding 80%
Altitude	not exceeding 2000m
Incoming materials	tea/vegetables/herbs
Control mode	servo drive+PLC+touch screen

Product Description

The MC84R rotary cutting machine is a specialized machine developed independently by our company for cutting vegetables, tea leaves, or similar materials. The MC84R rotary cutting machine consists of a body, feeding belt, compacting belt, cutter head, automatic sharpening device, automatic feeding device, and control system.

This machine adopts our company's innovative proprietary technology and automatic control systems such as servo drive, PLC, and touch screen, which can set and operate multiple parameters to meet different production needs.

Key Features

High-Precision Cutting - Sharp rotary blades deliver uniform cuts for tea, herbs, vegetables, and dry materials.
Fully Automated Operation - Equipped with servo drive, PLC, and touchscreen control for easy parameter adjustment.
Auto Blade Maintenance - Integrated sharpening and feeding system extends blade life and reduces downtime.
Multi-Parameter Settings - Adjust cutting thickness, speed, and pressure for different materials.

Technical Specifications

Project	Unit	Parameter
Cutting width	mm	0.5-1.5
Material reference stacking capacity	kg/m³	120
Rated capacity (with a cutting width of 1mm)	kg/h	3000
Knife door height	mm	75
Knife door width	mm	400
Number of blades	Piece	8
Cutterhead speed	rpm	50-300
Blade lifespan	Hr	98

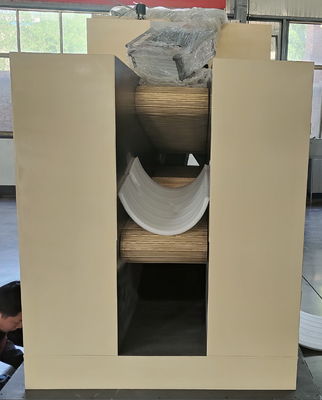

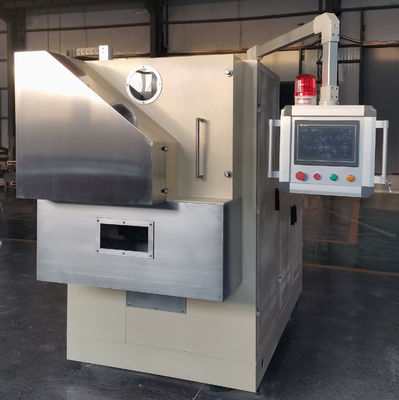

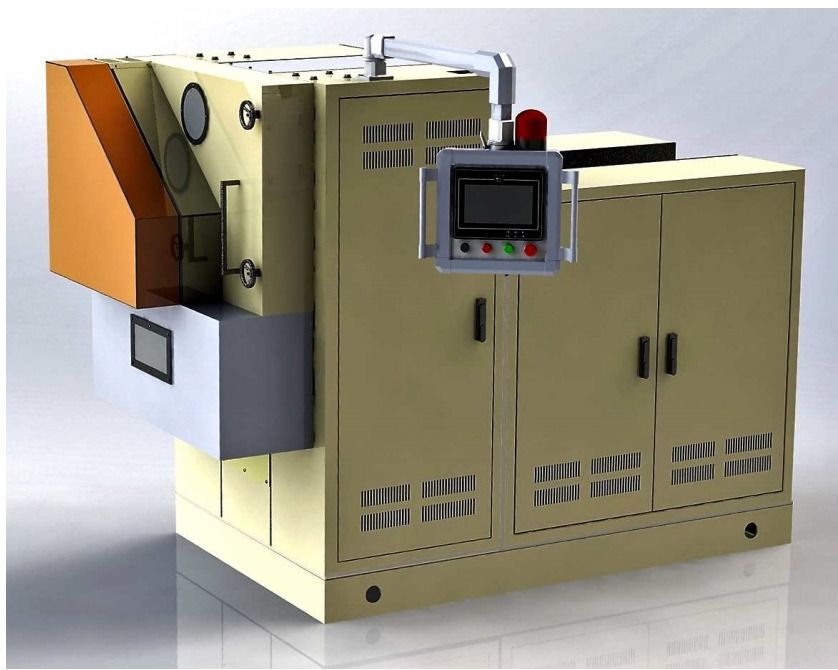

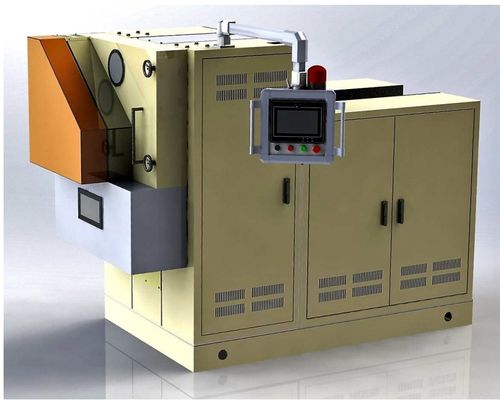

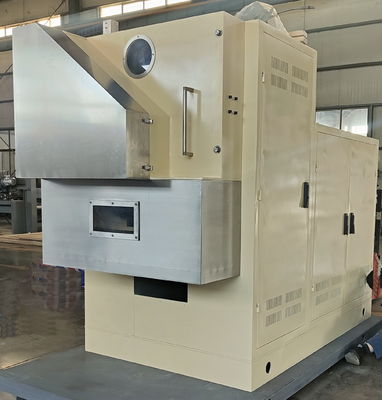

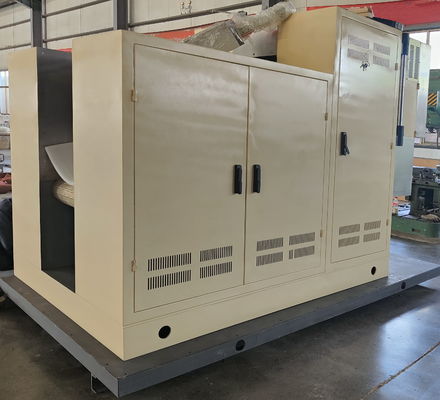

Product Images

Company Profile

Hainan Osay Technology Group Co., Ltd., an innovative company that specializes in manufacturing and supply of spare parts for tobacco machinery, as well as providing top-notch technical services to tobacco industry.

We understand that the tobacco industry is ever-evolving, and we are ready to adapt to the changing landscape. Our knowledgeable team stays informed about the latest industry trends to provide our customers with cutting-edge solutions that meet their specific needs and requirements.

Our comprehensive range of products includes spare parts for cigarette making, packing machine and filter making machine. We also supply customization service as drawing or sample of the parts from clients. Each product is meticulously crafted to meet the requirements and standards of the tobacco industry.
